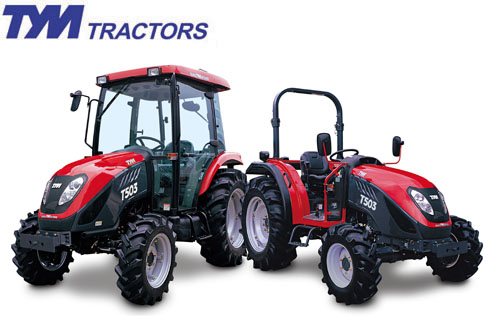

TYM, 503, TYM 503, ТРАКТОРИ, НОВИ, АГРОЕСНОВИ ТРАКТОРИ TYM Т503,Т503CAB

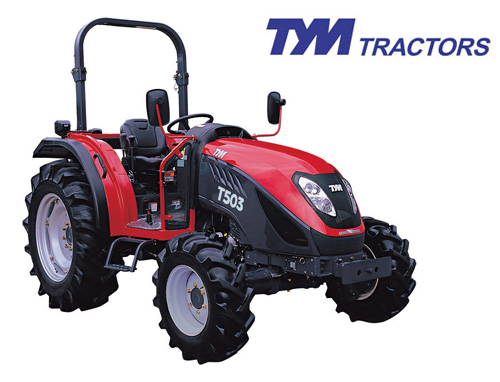

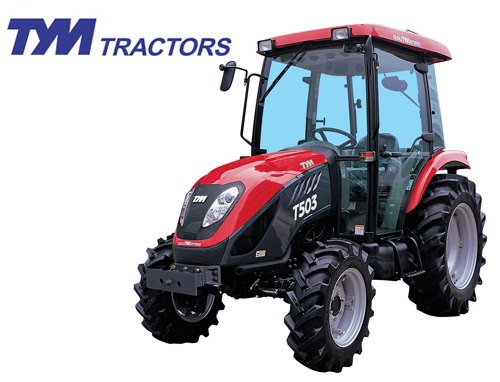

T503 е компактен трактор TYM . Сгъваема ROPS, задна чистачка (за модели с кабината), двоен въздушен филтър, както и хидростатично кормилно управление ще доставят удоволствие за работа с него.

трактор двигател, трактор, Tym Панелът с превключвател за предни / задни работни светлини и чистачки, разположени върху дясната греда, предлага лесен оперативен контрол.

TYM, 503, 503CAB, videoГледай видео зTYM T503 от тук..

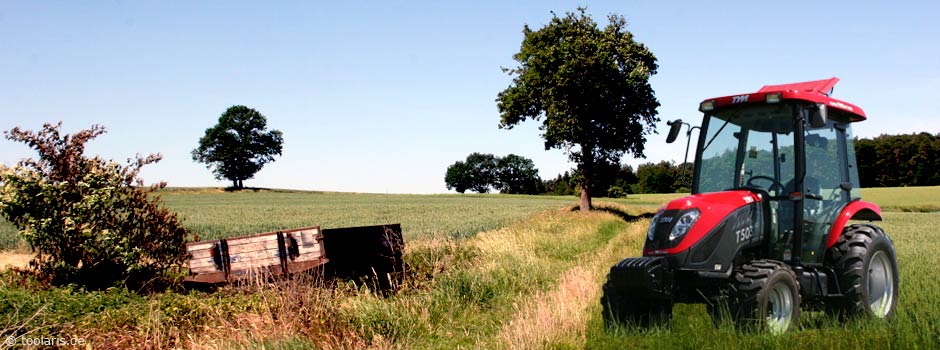

трактор_TYM

  1. Поръчай оферта ТУК
  2. Поръчай обаждане ТУК
  3. Свържи се с наш служител ТУК
  4. Научи повече и поискай оферта от ТУК....

ТЕХНИЧЕСКИ ХАРАКТЕРИСТИКИ



Model T503
Engine Manufacturer Caterpillar/Perkins
Engine Model C2.2/404D-22
Engine HP(kw)-Gross 50.7(37.8)
PTO HP(kw) 39.8(29.3)
Rated engine speed 2800
Number of cylinders 4
Displacement-cu.in. (cc) 135.2(2216)
Air Cleaner Dual Dry
Alternator 12V.65A
Fuel System Type Indirect Fuel Injection
Powertrain T503
Transmission type Sync/Shuttle
Number of Speeds 16/F 16/R
MaxTravellingspeed,mph(km/h) 20.7(33.7)
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate
Hydraulic system T503
Pump type Dual Gear Pump
Implement pump cap.gpm(L/Min) 9.5(36.1)
Steering pump cap. gpm (L/Min) 5.0(19.0)
Max Total flow gpm (L/Min) 14.5(55.1)
Category, 3 Point Hitch 1
Hitch lift capacity, lb. (kg) 2875(1300)
at 24 inches behind link ends, lb(kg) 2105(955)
Lift Control type Position/Draft
Joy Stick Valve Standard
No. of standard remote valves-option 2
PTO T503
PTO Type Independent
PTO Control Electric/Hydro
PTO Mid (rpm)-Option N/A
PTO Rear (rpm) 540
PTO Shaft Diameter in. (mm) 1 3/8 (35)
Capacities T503
Fuel Tank, U.S. gal. (L) 17(60)
Cooling system U.S. qt. (L) 9.0(8.5)
Crankcase (witd filter) U.S. qt. (L) 7.1(6.7)
Trans & Hydr. System, U.S. gal. (L) 9.2(35)
Front Axle qt. (L) 10.5(10)

трактор
Dimensions T503
Overall length, in. (mm) with 3P 141.3(3590)
Overall width, in. (mm) 62.6(1591)
Wheelbase, in. (mm) 76.2(1935)
Height to top of ROPS, in. (mm) 101.9(2590)
Min. Ground Cleareance, in. (mm) 13.8(350)
Min. Turn Radius, in (mm) witd Brakes 131.9(3352)
Min. Turn Radius, in (mm) w/o brakes 150.4(3820)
Standards and Weights T503
Agricultural Front 8.0-16
Agricultural Rear 13.6-24
Industrial Front 12-16.5
Industrial Rear 17.5L-24
Roll Over Protection Standard ROPS
Total Weight, lb (kg) 4140(1878)
















Model T503CAB
Engine Manufacturer Caterpillar/Perkins
Engine Model C2.2/404D-22
Engine HP(kw)-Gross 50.7(37.8)
PTO HP(kw) 39.8(29.3)
Rated engine speed 2800
Number of cylinders 4
Displacement-cu.in. (cc) 135.2(2216)
Air Cleaner Dual Dry
Alternator 12V.65A
Fuel System Type Indirect Fuel Injection
Powertrain T503CAB
Transmission type Sync/Shuttle
Number of Speeds 16/F 16/R
MaxTravellingspeed,mph(km/h) 20.7(33.4)
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate
Hydraulic system T503CAB
Pump type Dual Gear Pump
Implement pump cap.gpm(L/Min) 9.5(36.1)
Steering pump cap. gpm (L/Min) 5.0(19.0)
Max Total flow gpm (L/Min) 14.5(55.1)
Category, 3 Point Hitch 1
Hitch lift capacity, lb. (kg) 2865(1300)
at 24 inches behind link ends, lb(kg) 2105(955)
Lift Control type Position/Draft
Joy Stick Valve Standard
No. of standard remote valves-option 2
PTO T503CAB
PTO Type Independent
PTO Control Electric/Hydro
PTO Mid (rpm)-Option N/A
PTO Rear (rpm) 540
PTO Shaft Diameter in. (mm) 1 3/8 (35)


Capacities T503CAB
Fuel Tank, U.S. gal. (L) 17(60)
Cooling system U.S. qt. (L) 9.0(8.5)
Crankcase (witd filter) U.S. qt. (L) 7.1(6.7)
Trans & Hydr. System, U.S. gal. (L) 9.2(35)
Front Axle qt. (L) 10.5(10)
Dimensions T503CAB
Overall length, in. (mm) with 3P 141.3(3590)
Overall width, in. (mm) 62.6(1591)
Wheelbase, in. (mm) 76.2(1935)
Height to top of ROPS, in. (mm) 99.6(2530)
Min. Ground Cleareance, in. (mm) 9.6(245)
Min. Turn Radius, in (mm) witd Brakes 131.9(3352)
Min. Turn Radius, in (mm) w/o brakes 150.4(3820)



tymtym

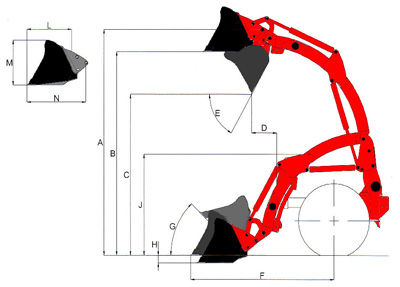

Tractor Model		 T433/503
Tractor Out Put (HP) 43/50
A. Maximum Lift Height 114.6"
B. Clearance with Attachment Level 103.4"
C. Clearance with Attachment Dumped 84.4"
D. Reach at Maximum Height (45°) 22.1"
E. Maximum Dump Angle 61°
F. Reach with Attachment on Ground 76.7"
G. Attachment Rollback Angle 46°
H. Digging Depth Below Grade 4.2"
J. Overall Height Below Grade 54.6"
L. Depth of Attachment (to back of inner shell) 23.3"
M. Height of Attachment 22.9"
N. Depth of Attachment (to pivot pin) 31.5"
Lift Capacity to Full Height at Pivot Pins 1,788lbs
Breakout Force at Ground level, Pivot Pins 3,974lbs
Relief Valve Setting (Loader Control Vavle) 2,418 psi
Rated Flow (Tractor System) 9 / 9.7 gpm
Lift Cylinder 2.36"
Bucket Cylinder 2.36"
Attachment used for specification 72"



ТРАКТОРИ TYM от "АГРОЕС"ЕООД

TYM, 503, 503cab, каталог, агроесКАТАЛОГ, НОВИ, ТРАКТОРИ, TYM, T353, T353TSH



tymtymtymtymtymtymtymтрактори, TYM, BT200, BT300, bt400

Backhoe Model BT200 BT300 BT400
*SPECS MAY VARY DEPENDING ON TRACTOR MODEL, TIRE SIZE, AND BUCKET SIZE
A. Digging Capacity (2ft flat bottom) 76.3" 89.7" 94.4"
B. Reach From Center line of Swing Pivot 113.1" 125.1" 136.1"
C. Loading Height (bucket at 60) 63.6" 72.4" 80.3"
E. Swing Arc 180 180 180
F. Transport Height (maximum) 75" 83.5" 92.9"
G. Transport Overhang 43.5" 49.0 50.4"
H. Bucket Rotation 180 180 180
I. Stabilizer Spread (down position) 79.9" 68.7" 68.7"
J. Stabilizer Spread (up position) 44.7" 46.4" 46.4"
K. Angle of Departure 21 21 21
Shipping Weight - Backhoe (without bucket) 787 LBS 1,069 LBS 1,102 LBS
Bucket Digging Force 2,846 LBS 3,057 LBS 4,151 LBS
Dipperstick Digging Force 1,592 LBS 1,571 LBS 2,660 LBS
Operating Pressure 2,466 psi 2,466 psi 2,466 psi
TYM, трактори, агроес
Cylinder Specification Bore DIA Retracted Length Stroke Rod DIA

  BT200 BT300 BT400 BT200 BT300 BT400 BT200 BT300 BT400 BT200 BT300 BT400
Boom 2.75 2.75 2.75 23 24.4 25.03 15.1 16.73 15.19 1.57 1.57 1.57
Bucket 2.36 2.36 2.36 21 24.2 24.80 12 16.81 15.55 1.37 1.37 1.37
Dipperstick 2.36 2.36 2.75 20.6 24.2 27.87 12.9 16.81 19.88 1.37 1.37 1.57
Swing 2.36 2.36 2.36 4.92 5.43 15.66 8.78 8.97 8.78 1.37 1.37 1.37
Stabilizer 2.36 2.36 2.36 17.5 17.5 17.55 9.33 10.31 10.31 1.37 1.37 1.37
Bucket Teeth Qty Struck Capacity Heaped Capacity Shipping Weight
*SPECS MAY VARY DEPENDING ON TRACTOR MODEL, TIRE SIZE, AND BUCKET SIZE
9" Bucket 3 0.73 cu ft 0.87 cu ft 46 lbs
12" Bucket 3 1.01 cu ft 1.24 cu ft 56 lbs
16" Bucket 3 1.38 cu ft 1.76 cu ft 64 lbs
18" Bucket 4 1.56 cu ft 2.02 cu ft 70 lbs
24" Bucket 5 2.11 cu ft 2.82 cu ft 94 lbs
36" Muck Bucket 6 2.78 cu ft 4.00 cu ft 114 lbs
